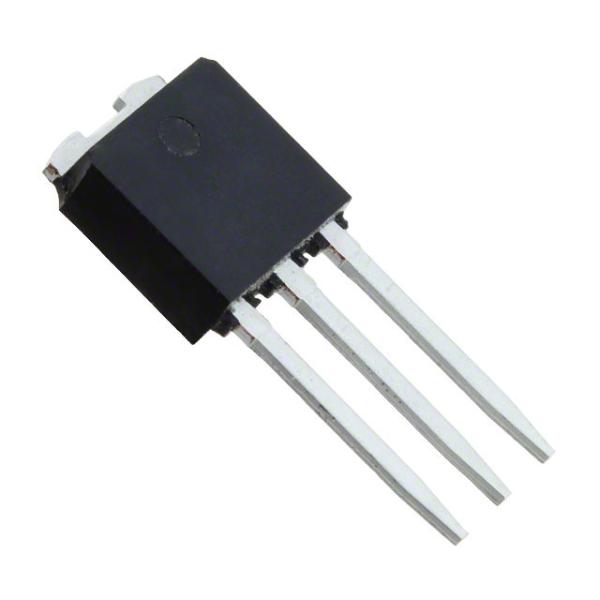

STGD5NB120SZ-1 IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Part Number : STGD5NB120SZ-1

Manufacturer : STMicroelectronics

Description : IGBT 1200V 10A 75W IPAK

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Series : PowerMESH™

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	10A
Current - Collector Pulsed (Icm)	10A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 5A
Power - Max	75W
Switching Energy	2.59mJ (on), 9mJ (off)
Input Type	Standard
Gate Charge	-
Td (on/off) @ 25°C	690ns/12.1µs
Test Condition	960V, 5A, 1 kOhm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package	I-Pak
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.

Detection

STGD5NB120SZ-1 IGBT Power Module Transistors IGBTs Single
