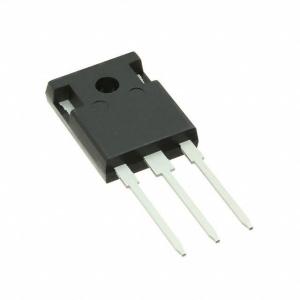

IGW40T120 IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Part Number : IGW40T120

Manufacturer : Infineon Technologies

Description : IGBT 1200V 75A 270W TO247-3

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Series : TrenchStop®

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Active
IGBT Type	NPT, Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	75A
Current - Collector Pulsed (Icm)	105A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 40A
Power - Max	270W
Switching Energy	6.5mJ
Input Type	Standard
Gate Charge	203nC
Td (on/off) @ 25°C	48ns/480ns
Test Condition	600V, 40A, 15 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
