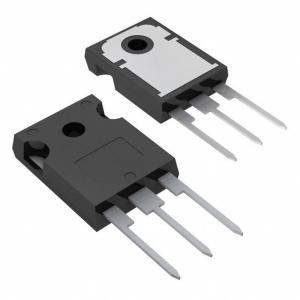

STGW40V60DF IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Part Number : STGW40V60DF

Manufacturer : STMicroelectronics

Description : IGBT 600V 80A 283W TO247

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	80A
Current - Collector Pulsed (Icm)	160A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 40A
Power - Max	283W
Switching Energy	456µJ (on), 411µJ (off)
Input Type	Standard
Gate Charge	226nC
Td (on/off) @ 25°C	52ns/208ns
Test Condition	400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr)	41ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
