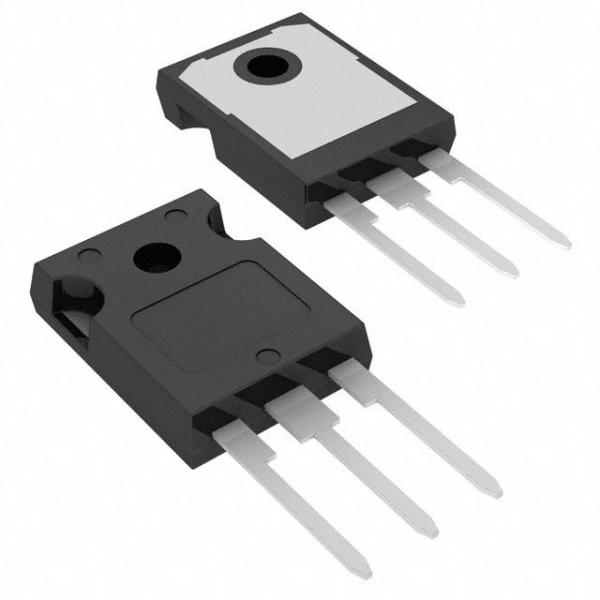

HGTG10N120BND IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Part Number : HGTG10N120BND

Manufacturer : Fairchild/ON Semiconductor

Description : IGBT 1200V 35A 298W TO247

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Not For New Designs
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	35A
Current - Collector Pulsed (Icm)	80A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 10A
Power - Max	298W
Switching Energy	850µJ (on), 800µJ (off)
Input Type	Standard
Gate Charge	100nC
Td (on/off) @ 25°C	23ns/165ns
Test Condition	960V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr)	70ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.

Detection

HGTG10N120BND IGBT Power Module Transistors IGBTs Single
